Heavy-Duty Vertical Semi Truck Tire Changer – Model HC8930

Regular price $5,995.00
SKU: HC8930 ISBN: 72611495
Regular price $5,995.00

Tackle Heavy-Duty Tire Changes with Ease — HCB930 Vertical Semi Truck Tire Changer

Power through your toughest tire jobs. The HC8930 is a heavy-duty, electro-hydraulic truck tire changer designed for drop-centre, tubeless, and cylindrical-rim tires found on large commercial vehicles, including buses, transport trucks, and industrial equipment. Built for high-output shops and fleet service operators, this machine delivers precision, safety, and efficiency.

✅ Key Features:

  • Automatic Hydraulic Operation: Handles bead breaking, demounting, and remounting via integrated hydraulic system.

  • Dual Direction Rotation: Bi-directional turntable clamping chuck for versatile positioning.

  • Hydraulic Bead Breaker Disc: Adjustable mobile arm breaks tough beads quickly.

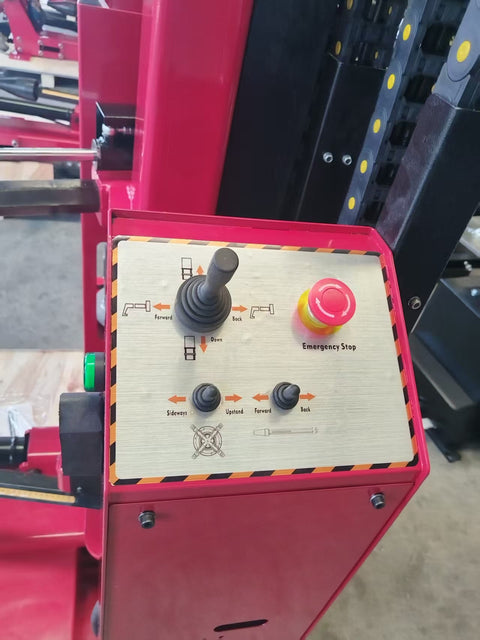

  • Positionable Control Console: Monitor and control from a safe working angle.

  • Low-Noise, Energy-Saving Mode: Standby function reduces power use and noise emissions.

  • Compact Footprint: Built-in hydraulic power unit saves valuable floor space.

  • Ideal for: Commercial tire shops, fleet maintenance facilities, agricultural and industrial operations.


🔧 Key Features:

  • 🔄 Automatic Tire Clamping:
    Securely fits drop-center, tubeless, and cylindrical rims for heavy-duty vehicles.

  • ⚡ Electro-Hydraulic Power:
    Delivers outstanding wheel-holding torque and precise tire removal.

  • 🧍 Adjustable Control Console:
    Enables ergonomic use from the safest operator position.

  • 🛠️ Hydraulic Bead Separation Tools:
    Simplifies mounting, demounting, and loosening operations.

  • 🏢 Compact Power Unit:
    Integrated space-saving hydraulic unit minimizes machine footprint.

  • 💤 Standby Power Mode:
    Reduces energy consumption when not in active use.


📐 Specifications:

Parameter Value
Max Tire Diameter 1600 mm (≈63")
Max Tire Width 780 mm (≈30.7")
Rim Diameter Range 14″ – 26″
Bead Breaker Force 24 kN
Hydraulic Operating Pressure 130 – 150 bar
Motor Power 1.5 kW (Hydraulic) / 1.1 kW (Motor)
Voltage 220V / 1Ph / 60Hz (Optional 3Ph)
Rotation Speed 7 rpm (Bi-Directional)
Working Pressure (Air) 6–8 bar (≈90–115 PSI)
Noise Level <75 dB
Net Weight 540 kg (1,190 lbs)
Gross Weight 600 kg (1,320 lbs)
Packing Size 2100 x 1500 x 1100 mm


📦 What’s Included:

  • HC8930 Tire Changer Main Unit

  • Mobile bead-breaking arm

  • Control console with pedestal

  • Hydraulic unit (integrated)

  • Clamp accessories & protection covers

  • Operator’s manual
