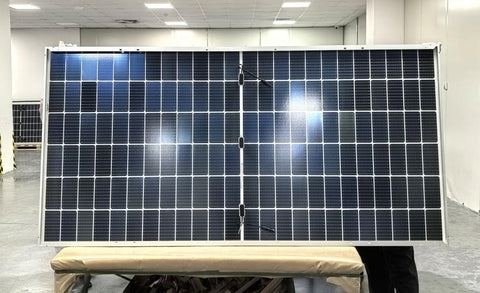

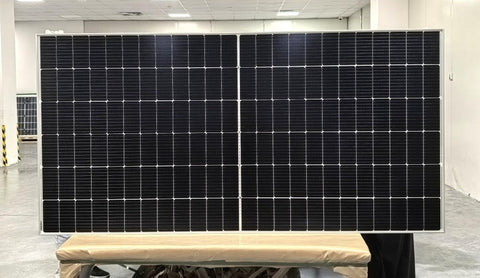

565W Bifacial Monocrystalline Solar Panel | High-Efficiency 144-Cell PV Module for Maximum Energy Output
🔋 565W Bifacial Monocrystalline Solar Panel – 144 Half-Cut Cells | IP68 Rated | High-Efficiency PERC Tech
Maximize Solar Energy with Dual-Sided Power Capture
Engineered for superior efficiency and durability, this 565W Bifacial Monocrystalline Solar Panel is perfect for commercial installations, off-grid systems, and residential setups alike. The bifacial PERC half-cell design allows it to harvest sunlight from both the front and back surfaces, delivering higher energy yield—especially in reflective environments.
☀️ Key Benefits:
-
Dual-Sided Generation
Bifacial architecture increases total power output by capturing reflected sunlight from the rear. -
PERC Half-Cut Cell Technology
Boosts overall performance and reduces power loss in shaded or partially lit conditions. -
Rugged & Weather-Resistant

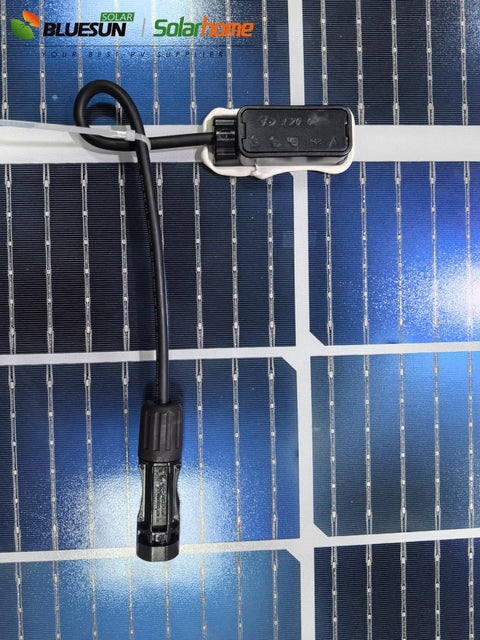

IP68-rated junction box and anodized aluminum frame ensure long-lasting protection from water, dust, and corrosion. -
Extreme Load Tolerance
Handles up to 2400 Pa wind load and 5400 Pa snow load — ideal for all climates. -
Long-Term Warranty
Backed by a 30-year linear performance warranty for peace of mind. -
Excellent Temperature Coefficient
Maintains output in hot conditions for consistent performance year-round.

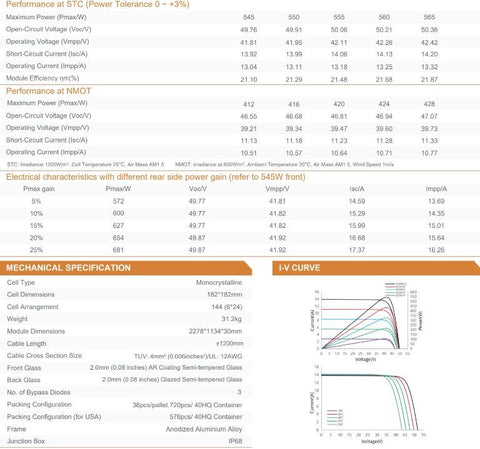

📐 Technical Specifications:
Feature | Detail |
---|---|
Power Output | 565 Watts |
Cell Type | Monocrystalline (144 Half-Cells) |
Dimensions | 89.68" × 44.65" × 1.38" |
Weight | 68.7 lbs |
Frame | Anodized Aluminum Alloy |
Wind Load Capacity | 2400 Pa |
Snow Load Capacity | 5400 Pa |
Junction Box Rating | IP68 Waterproof & Dustproof |
🔌 Ideal For:
-
Off-Grid Power Systems
-
Remote Cabins & Agricultural Sites
-
Residential Energy Independence
-
Commercial Rooftop & Ground-Mount Solar Projects
Clean energy. More power. Built to last.
