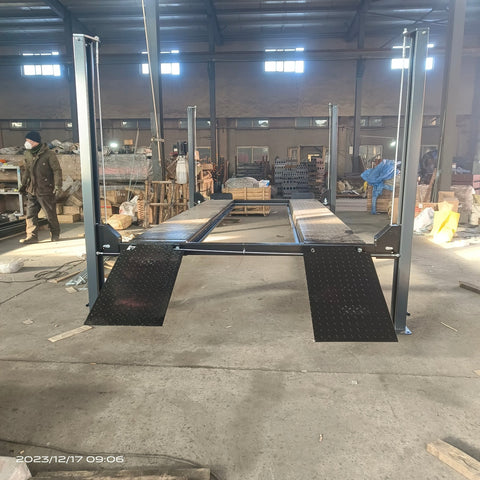

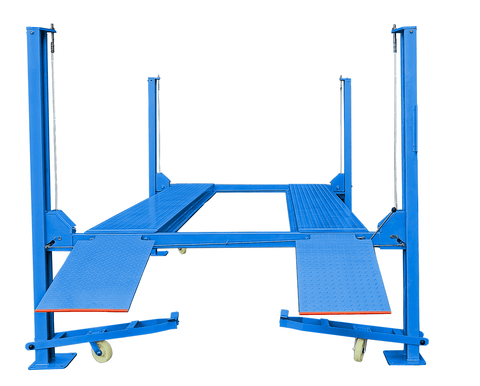

Heavy-Duty 4 Post Car Parking Lift – JH4P3700 | 8100 Lbs Capacity | 110V Manual Control

Upgrade your home garage or commercial workshop with the powerful and reliable JH4P3700 Four Post Car Parking Lift. This premium electro-hydraulic powered parking solution offers a massive 3700 kg (8,157 lbs) lifting capacity, making it ideal for both parking and stacking vehicles securely and efficiently.

Engineered with robust steel construction, a 1900 mm maximum lifting height, and 110V power compatibility, this lift delivers performance, safety, and convenience in one compact package. Whether you need to expand parking capacity or protect collectible vehicles, the JH4P3700 is built to meet your needs.

Key Features

• 3700 kg (8,157 lbs) Lifting Capacity – Safely lifts most passenger vehicles and light trucks
• Four Post Design – Excellent stability and safety during parking
• 1900 mm Max Lift Height (Above Runway) – Ample space for stacking vehicles
• 1800 mm Lift Clearance (Under Runway) – Store another car below
• Manual Controls + Emergency Stop (E-Stop) – Enhanced operator control and safety
• Hydraulic Power Unit (110V, 2.2KW) – Smooth, efficient operation
• Galvanized Runways (4200mm Length) – Corrosion-resistant and easy to clean
• Safety Locks – Engage automatically during lift cycles for peace of mind
• Portable Wheel Kit Included – Move and reposition easily if needed

Specifications

• Model    JH4P3700
• Lifting Capacity    3700 kg
• Power Supply    110V (Single Phase)
• Motor Power    2.2KW
• Lift Height (Above Runway)    1900 mm
• Lift Height (Under Runway)    1800 mm
• Runway Length    4200 mm
• Runway Width    475 mm
• Overall Height    2226 mm
• Overall Width    2615 mm
• Net Weight    750 kg
• Hydraulic Pressure    18 MPa
• Noise Level    ≤ 70 dB(A)
• Operation Time    Raise/Lower ~51s

✅ What's Included

• 4 Post Parking Lift Assembly
• Hydraulic Power Station
• Front & Rear Beams

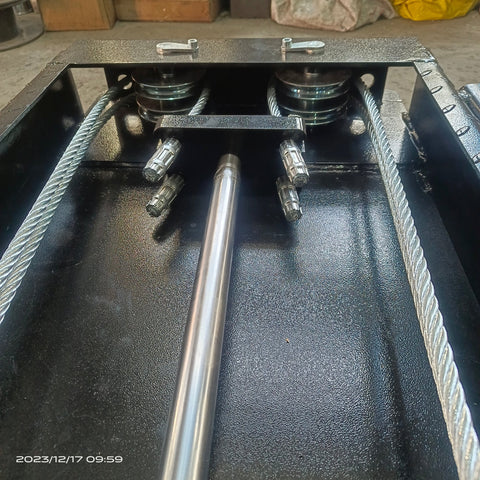

• Wire Rope System
• Control Box & Safety Mechanisms
• Portable Wheel Kit
• User Manual & Installation Guide

⚠️ Important Notes

• For Parking Use Only – Not designed for automotive servicing
• Installation Required – Must be installed on a C25-grade concrete slab
• Use Indoors Only
• Professional Setup Recommended
