🧰 Heavy-Duty 12V Electric Winch – 20,000 LB Line Pull

SKU: SU20000

Extreme Power for Extreme Jobs

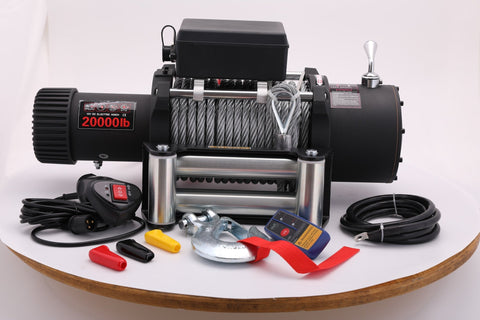

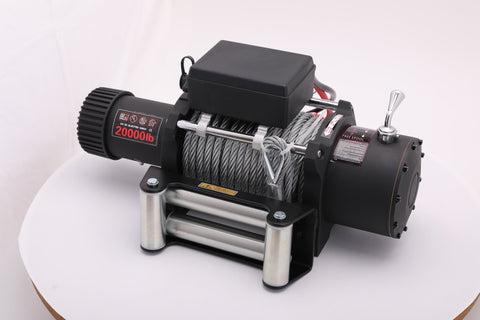

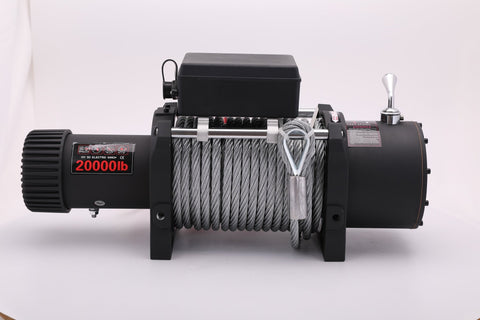

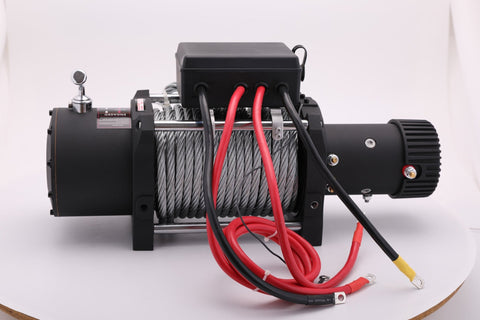

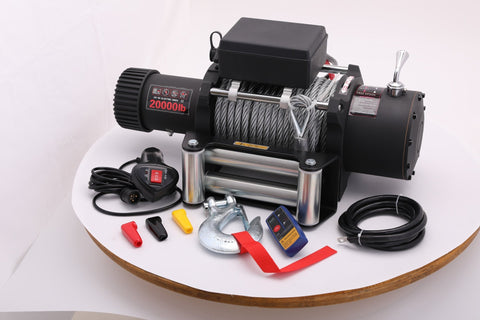

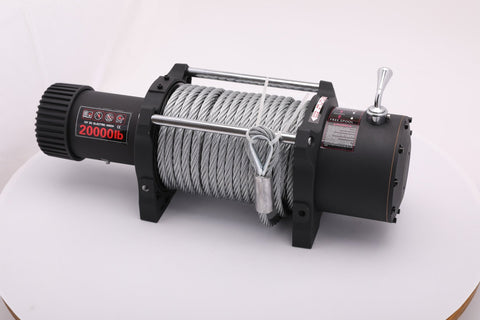

Take on your toughest recovery operations with this 20,000 LB capacity 12V electric winch. Engineered for heavy-duty towing, off-road recoveries, and commercial transport, it features a 7.8 HP high-torque motor, 4-stage planetary gearing, and a durable steel cable to deliver smooth, controlled pulls under the harshest conditions.

🔩 Key Features & Specifications:

• Rated Line Pull: 20,000 lbs (9,071 kg) – Single-line pull

• Motor: 7.8 HP (5.8 kW), 12V Series Wound – Built for high-load performance

• Gear System: 4-Stage Planetary | Gear Ratio: 469:1

• Clutch Type: 180° Rotating Handle – For fast and secure engagement

• Steel Cable: 12 mm × 28 m – Rugged and abrasion-resistant

• Drum Dimensions: 3.5" × 8.8" (89 mm × 224 mm)

• Fairlead: 4-Way Roller – Smooth cable operation

• Remote Control: Wired remote included for safe operation

• Duty Cycle: Intermittent – Designed for repeated heavy-duty use

• Mounting Bolt Pattern: 10" × 4.5" (254 mm × 114.3 mm)

📏 Dimensions & Weight:

• Package Size: 68 × 28 × 38 cm

• Gross Weight: 143.5 lbs (65 kg)

🚚 Best For:

• Recovery & Towing Trucks

• Jeeps, 4x4s, and Off-Road Rigs

• Logging & Forestry Equipment

• Agricultural Machinery

• Utility Trailers & Mobile Service Units

Rugged. Reliable. Ready When You Are.
From steep slopes to muddy terrain, this winch is the powerhouse you can trust.

📩 Inquire now for mounting kits, accessories, or wholesale pricing.
