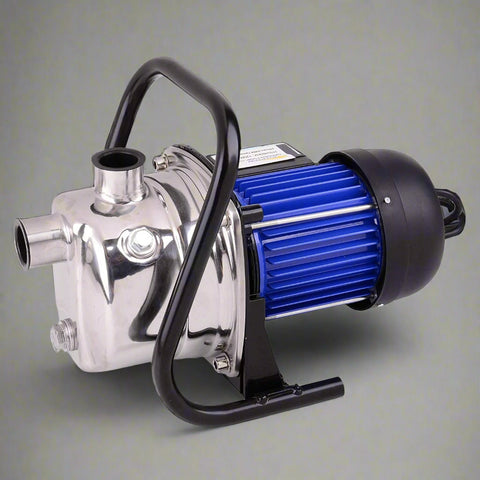

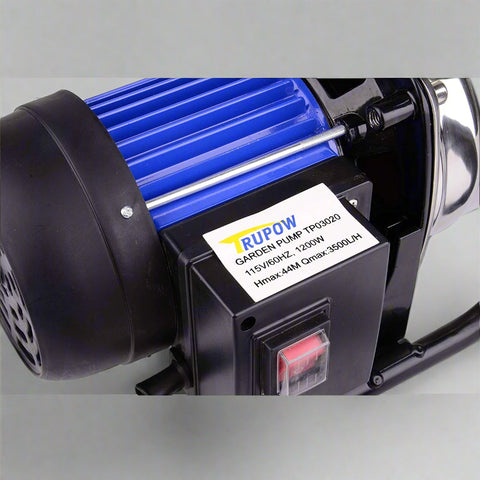

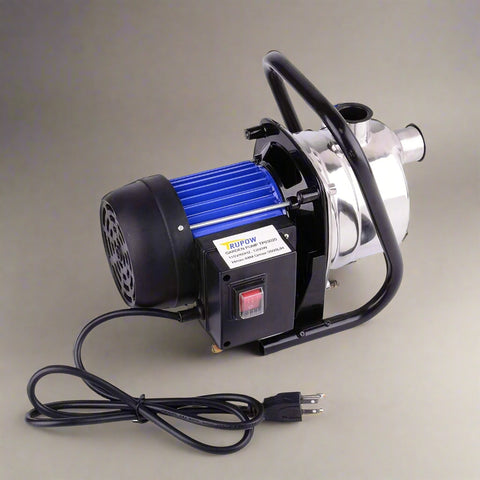

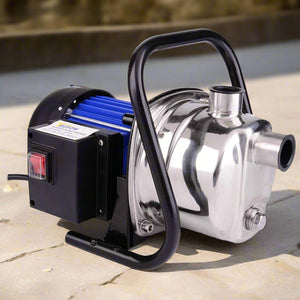

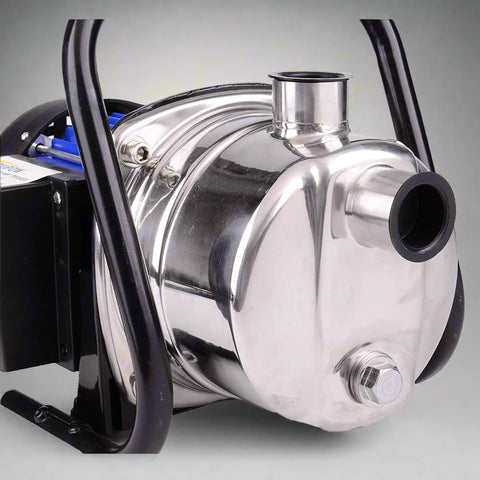

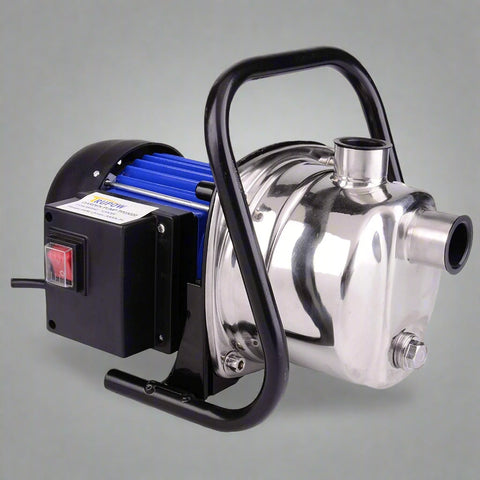

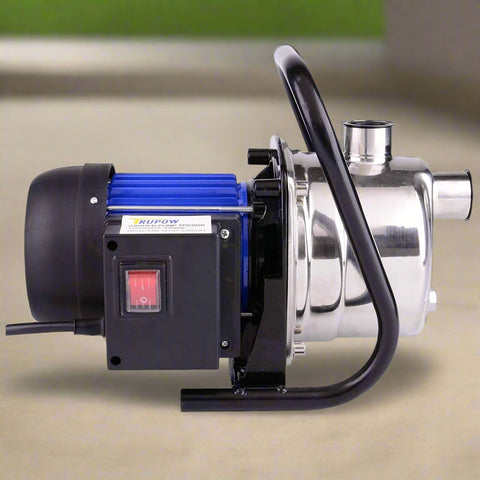

1.6 HP Shallow Well Jet Pump – TP3020 Stainless Steel, 1200W, 3500L/h, 66 PSI for Irrigation & Pools TP3020
💧 Efficient Water Transfer for Gardens, Pools & Shallow Wells – TP3020 Jet Pump
Streamline your water transfer tasks with the TP3020 Shallow Well Jet Pump, designed for high-performance irrigation and pressure boosting in both residential and light commercial settings. Built with a durable stainless steel housing and a powerful 1.6 HP copper motor, this pump delivers reliable water flow for gardens, shallow wells, rainwater harvesting, and more.
⚙️ Key Specifications
| Attribute | Details |
|---|---|
| Motor Power | 1200W / 1.6 HP Copper Motor |
| Max Flow Rate | 3500 L/h (925 GPH) |
| Max Suction Height | 23 ft |
| Max Delivery Height | 144 ft |
| Max Pressure | 66 PSI |
| Inlet/Outlet Size | 1" NPT |
| Cord Length | 4 ft |

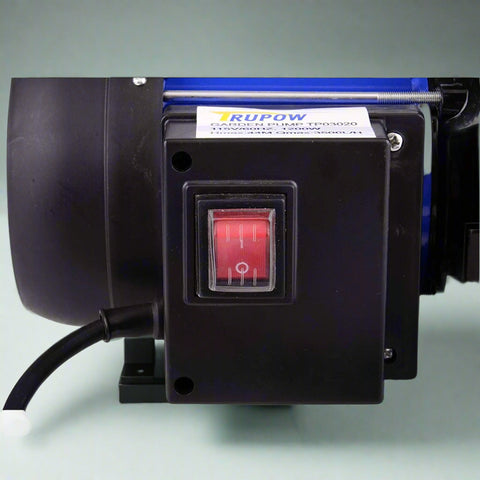

| Switch Type | Waterproof On/Off |
| Housing Material | Stainless Steel |
🏡 Ideal Applications
-
Garden and drip irrigation systems
-
Landscape and backyard water transfer
-
Filling swimming pools, tanks, and barrels
-
Shallow well extraction
-
Domestic water pressure boosting
❓ FAQs
Q: Can I use this with a rainwater collection system?
A: Absolutely! It's ideal for use with cisterns, barrels, and rainwater harvesting setups.
Q: What is the maximum suction depth?
A: The pump can draw water from sources up to 23 feet deep.
Q: Can it be used outdoors?
A: Yes — it features a stainless steel weather-resistant build, but a protective cover is recommended for long-term exposure.
Q: Does it include a pressure switch or tank?
A: It comes with a built-in waterproof on/off switch. External pressure switches or tanks can be added as needed (sold separately).
Reliable. Efficient. Built to last.
The TP3020 Jet Pump is your trusted companion for everyday water transfer — combining performance, durability, and simplicity in one compact system.
