Overview

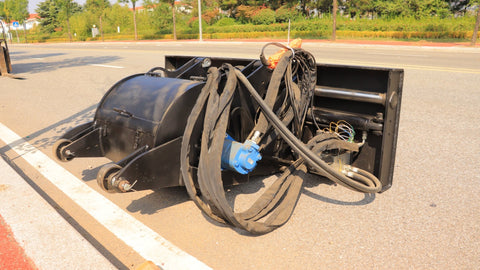

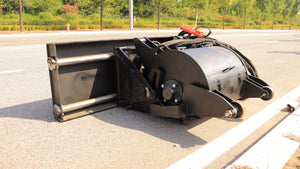

The Hydraulic Floor Scabbler Attachment is a high-performance surface preparation tool designed for planing, resurfacing, and leveling concrete floors in industrial, commercial, and construction settings. Engineered with precision hydraulic control and a steel-reinforced frame, this attachment is ideal for everything from warehouse floors to parking garages.

📐 Technical Specifications
Parameter Value
Working Width 23.5 inches
Working Depth 0 – 4.7 inches
Lateral Shift Range 23.5 inches
Dimensions (L×W×H) 54.8” × 79.3” × 30.7” (1391×2015×780mm)
Weight 1984 lbs (900 kg)

🔧 Key Features
Q355B Alloy Steel Frame: Built for rugged job sites and continuous operation

Dual Hydraulic Planing Cylinders:

Oil Cylinder 50/28-145 – Depth adjustment up to 120mm

Oil Cylinder 63/35-196 – Depth adjustment up to 60mm

Side-Shift Hydraulic Control: Lateral range of 23.5” for edge-to-edge grinding

Powerful Motors: OMT-490 motor (Model 191M4165) for efficient drive

Remote-Controlled Valve System: Adjust speed, pressure, and flow easily

Electrical Interface: COB-63A crane switch with waterproof control & English buttons

✅ Ideal Applications
Floor resurfacing and concrete grinding

Industrial renovation and demolition

Warehouse, garage, or parking lot restoration

Large-scale commercial flooring projects

⚠️ Safety & Operation Tips
Do not lift the scabbler more than 8” (20cm) during use to avoid debris ejection

Never stand in front of the operating equipment

Adjust grinding depth before operation using dual-cylinder configuration

Use the solenoid valve group for precise hydraulic control
