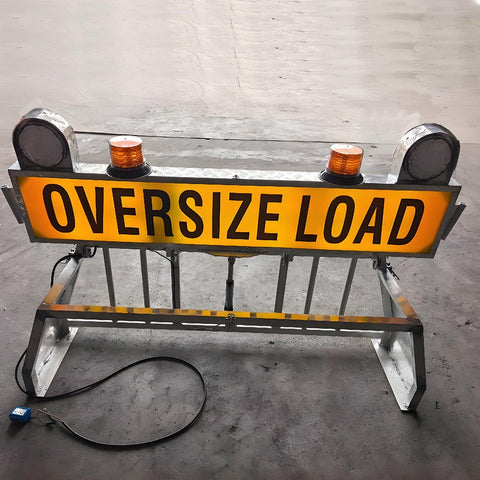

Maximize Road Safety & Compliance with This Rugged Oversize Load Sign Setup!

Whether you're leading wide loads, heavy hauls, or pilot car convoys, this heavy-duty warning sign setup delivers high visibility and easy deployment when it matters most.

💡 Key Features:

• Hydraulic Lift Operation for quick up/down control
• Dual LED Flashing Lights for extreme visibility

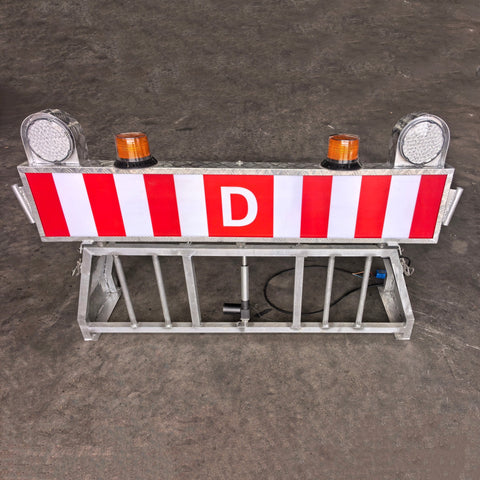

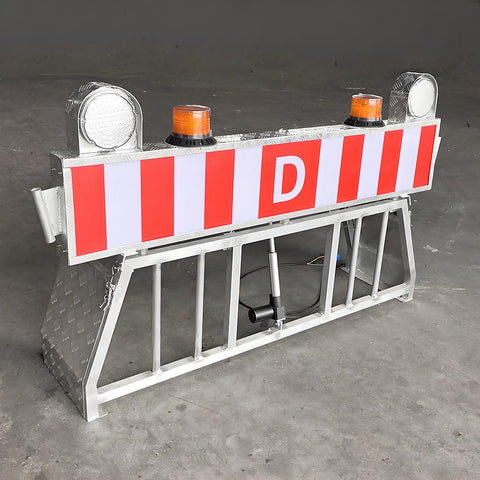

• Center “D” Panel with Reflective Striping for maximum awareness
• Aluminum Frame – lightweight yet tough
• Mountable to pilot car or load escort rig
• Built to withstand harsh road conditions

📦 Perfect for:

• Wide Load Convoys
• Escort & Pilot Cars
• Heavy Haul & Oversize Transport
• Municipal or Contractor Fleets

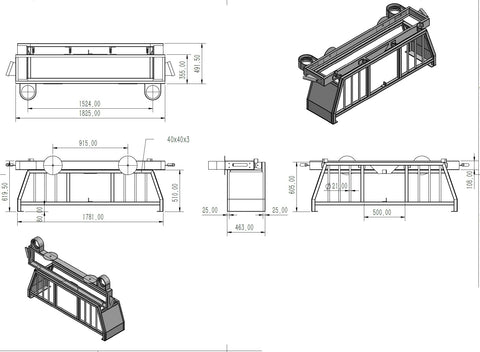

  📏 Dimensions

  • Overall Length (front view):

    • 1825.00 mm (outside)

    • 1524.00 mm (inside)

  • Overall Height (front view):

    • 491.50 mm (total height)

    • 355.00 mm (lower section)

  • Side View (length):

    • 1781.00 mm (base length)

    • 915.00 mm (between circular mounts)

    • 619.50 mm (height from base to top, left side)

    • 510.00 mm (height from base to circular mount center)

    • 80.00 mm (bottom section height)

    • Structural member: 40 × 40 × 3 mm square tube

  • End View (width):

    • 463.00 mm (overall width)

    • 25.00 mm (side plate thickness, both sides)

    • 605.00 mm (overall height)

    • Ø21.00 mm (hole diameter)

  • Top/Section View:

    • 500.00 mm (spacing at base between vertical members)

    • 108.00 mm (height of a section detail at top)
